1 / 3

Automated separating machine for stacking corners with ReBeL robot

Wittekindshofer Werkstätten - Betriebsmittelbau
Manufacturing
Pick & Place

Prezzo dell'hardware: 15.661,76 €

ROI

24

months

DOF

6

Max. payload

2

kg

Working independently at last, despite severe paralysis: to fulfil Daniel Hillebrand's dream, the Wittekindshofer workshops in Bad Oeynhausen have created an automated workstation. As the budget was limited, the challenge was to find a cost-effective collaborative robot. Now the ReBeL from igus, a cobot made of high-performance plastic, supports Daniel's work process. The solution also needed to be minimalist and easy to maintain.

Now the ReBeL from igus, a cobot made of high-performance plastic, supports Daniel's work process. igus can offer the cobot at this low price because it is largely made of robust and durable high-performance plastics, which are much cheaper than metal.

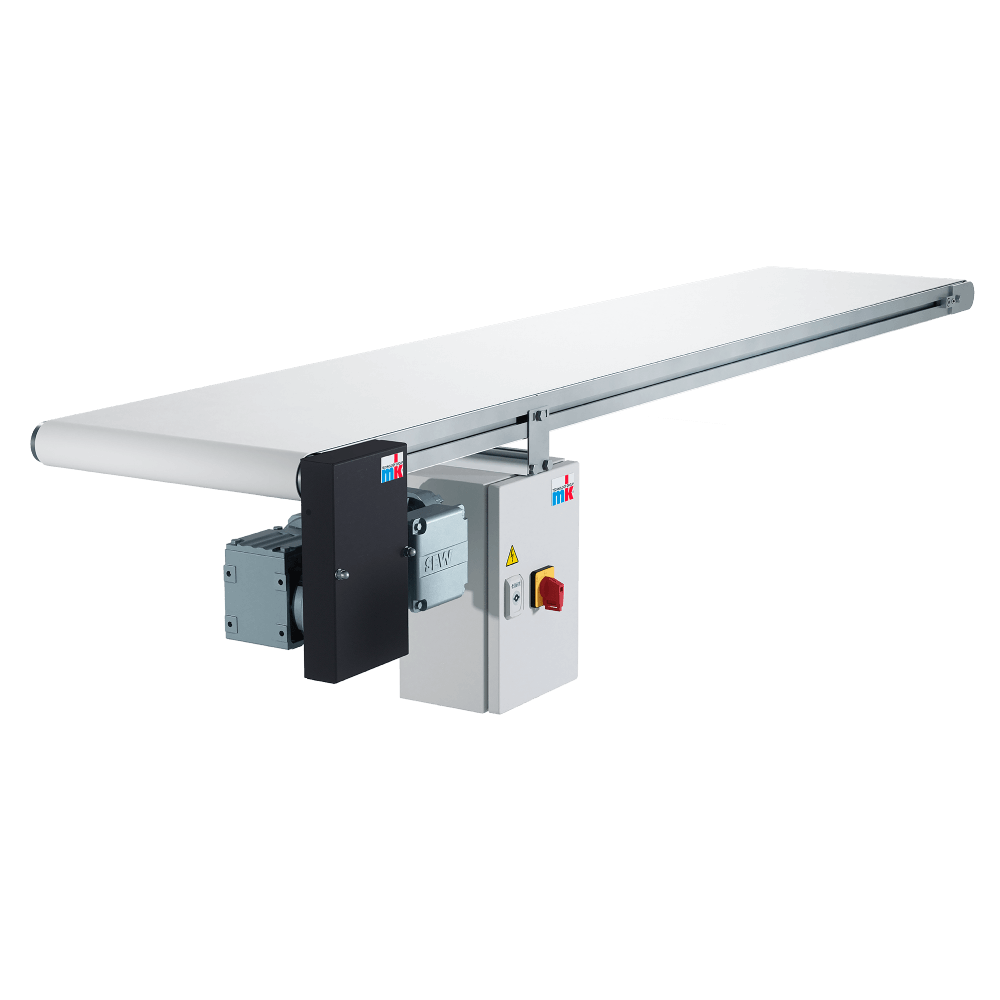

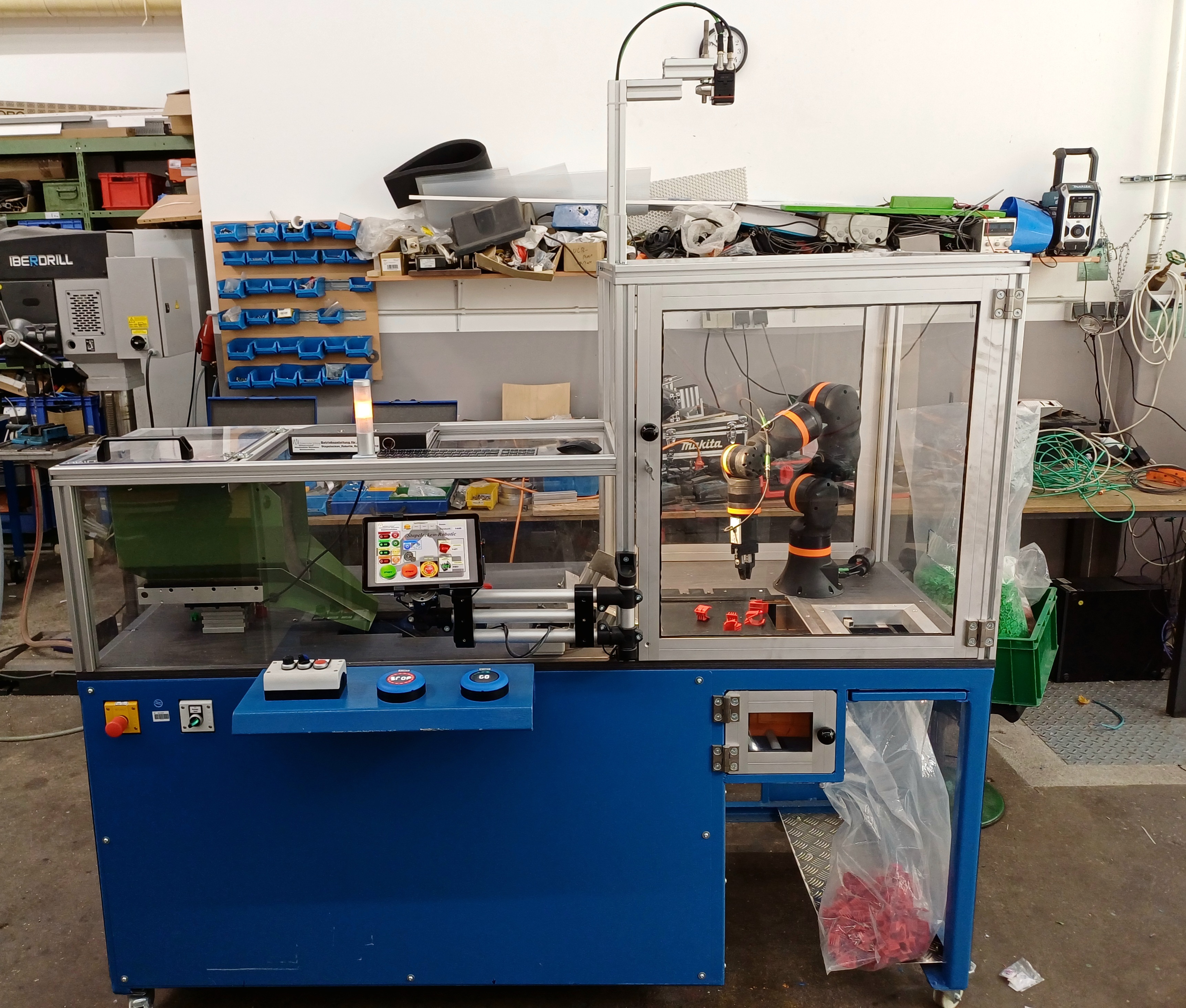

Daniel uses the machine to automatically sort out foreign objects. He uses a chin joystick to control a mouse pointer on a tablet. When Daniel Hillebrand starts the machine, a step conveyor transports a handful of edge elements, hundreds of which have been filled into a feed hopper, onto a 250 millimetre wide conveyor belt. The ReBeL Cobot grabs the components from the belt and throws them into a discharge container. Screws and other foreign objects remain on the conveyor belt and fall into a waste container.

5 Componenti

15.661,76 €
