More than 30 years of experience in handling and assembly automation

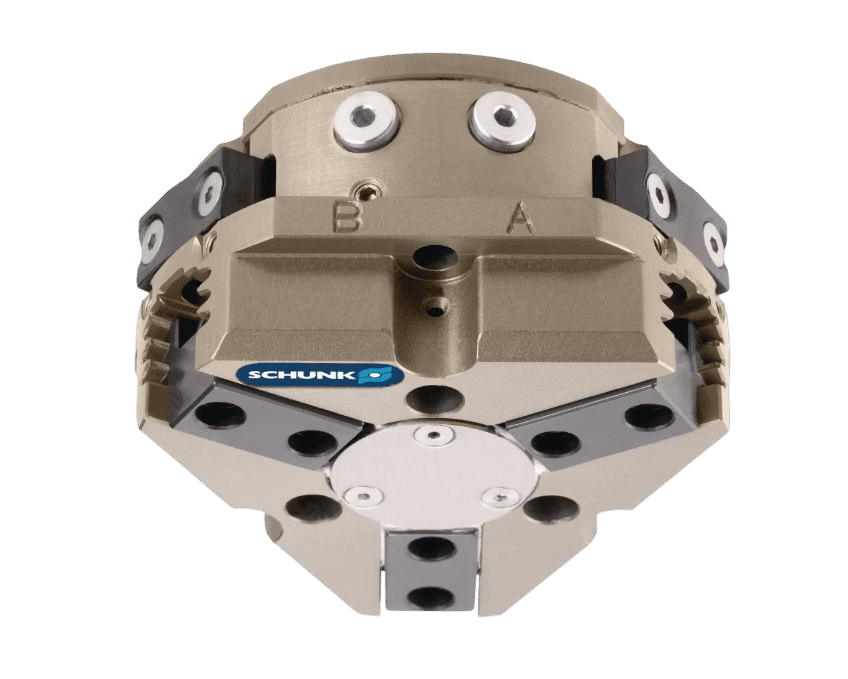

Whether sensitive or powerful, with two, three or four gripper fingers, parallel or centric, whether you need a stacking gripper or a long-stroke gripper. SCHUNK offers everything in its portfolio, right up to the SVH five-finger gripper hand from the range for mobile gripping systems. SCHUNK grippers are known for their precision, longevity, and robustness. They are synonymous with process stability and efficiency in assembly and handling. With more than 4,000 standard components, SCHUNK offers the world's most comprehensive range of hydraulic, pneumatic, and electric grippers in stock.
